JUMPER JPD-500H PULSE OXIMETER
Child Finger Pulse Oximeter for SpO₂, Pulse Rate & PI Monitoring

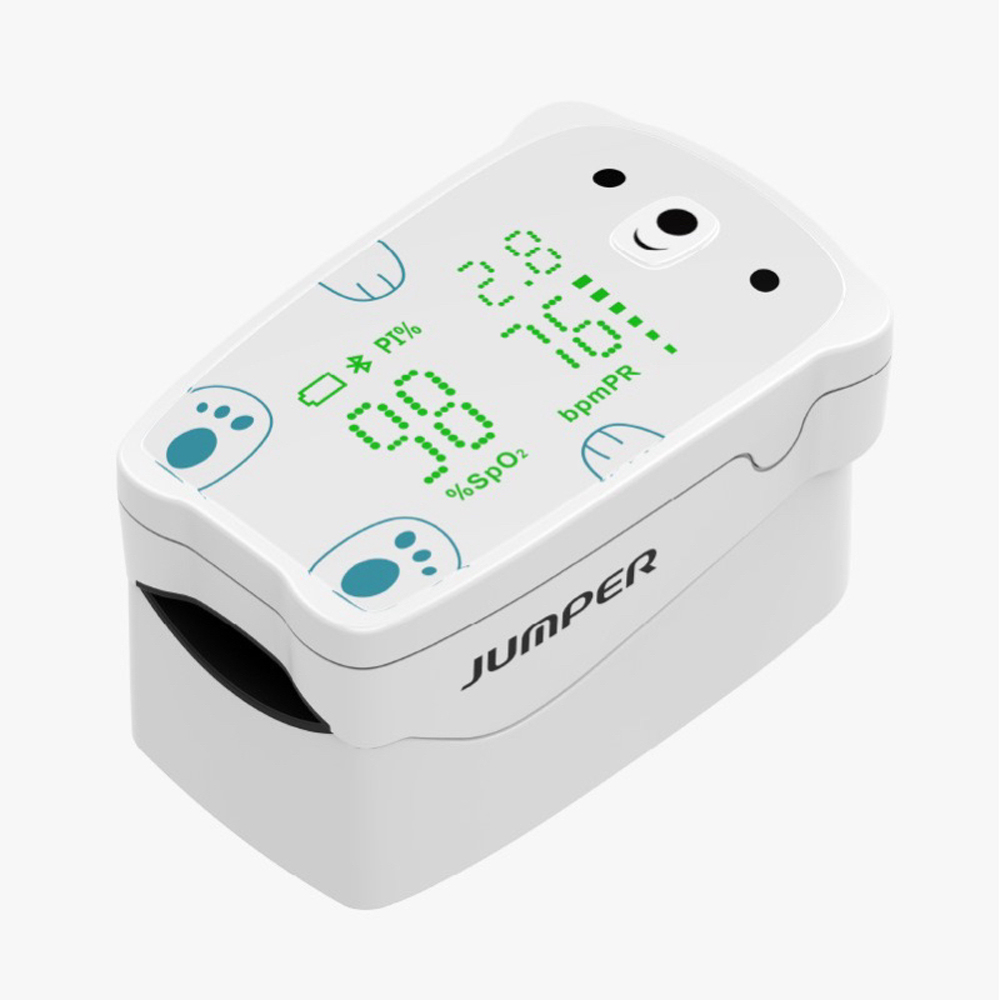

The JPD-500H LED Fingertip Pulse Oximeter is a compact and easy-to-use monitoring device designed to measure blood oxygen saturation (SpO₂), pulse rate (PR), and perfusion index (PI) through the fingertip. It uses photoelectric oxyhemoglobin inspection technology combined with pulse scanning technology to provide quick and convenient readings.
Designed specifically for children aged 3–12 years, the JPD-500H features a comfortable finger chamber that accommodates a wide range of child finger sizes. Its compact design makes it convenient for use at home, hospitals, community healthcare settings, and sports or physical-care environments.
Key Features
- SpO₂ & Pulse Rate Monitoring – Measures oxygen saturation and pulse rate through the fingertip.
- LED Display – Provides clear and easy-to-read measurements.
- Fast & Accurate Measurement – Designed for quick and convenient monitoring.
- Alert Function – Provides reminders when measured values reach preset limits.
- Child-Friendly Design – Suitable for children aged 3–12 years.
- Wide Finger Size Compatibility – Designed to accommodate different child finger sizes.
- Low Battery Reminder – Alerts users when the battery needs replacement.
- Compact & Portable – Easy to carry and convenient for home or travel use.

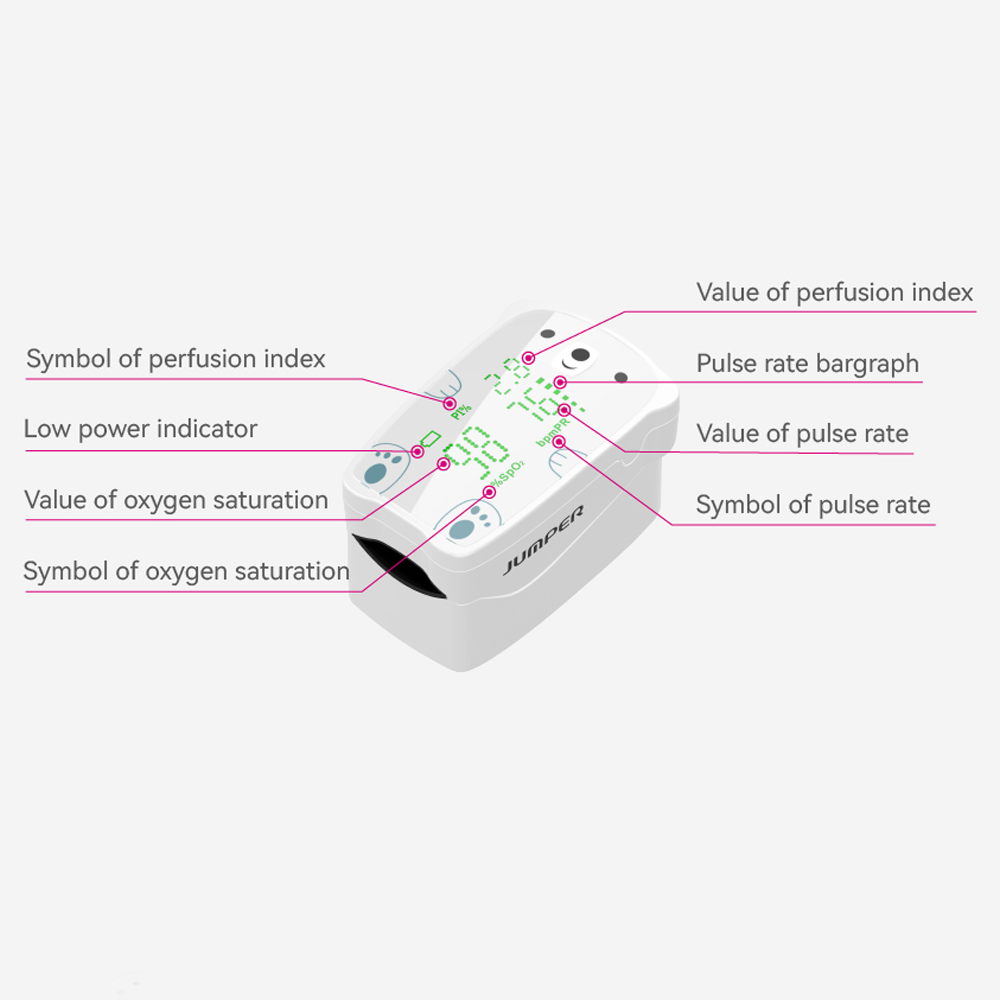

- Multiple Parameters – Displays PR, SpO₂, and PI.
- Easy to Operate – Simple fingertip operation for convenient monitoring.
Applications
The JPD-500H Fingertip Pulse Oximeter is suitable for use in:
- Home and family healthcare
- Hospitals and clinics
- Community healthcare
- Child health monitoring
- Sports and physical-care activities
- General SpO₂ and pulse rate monitoring
For exercise-related use, measurements are recommended when the child is in a calm and resting state.
Technical Specifications
| Specification | Details |
|---|---|
| Model | JPD-500H |
| Display Type | LED |
| Parameters | PR / SpO₂ / PI |
| Application Range | Children (3–12 Years Old) |
| Dimensions | 52.6 × 34.1 × 31.2 mm |
| Power Supply | 2 × AAA Batteries |
| SpO₂ Range | 70–100% |
| SpO₂ Accuracy | ±2% |
| Pulse Rate Range | 25–250 BPM |
| Pulse Rate Accuracy | ±2 BPM |
| Indicators | Low Battery Reminder, Value Limit Reminder |
How to Use
- Insert the required 2 AAA batteries.
- Open the finger chamber and gently place the child’s fingertip inside.
- Ensure the finger is positioned properly and remains still during measurement.
- Wait for the readings to stabilize.
- Read the SpO₂, pulse rate, and PI values on the LED display.
- Remove the finger after completing the measurement.
Important Safety Information
- Read the user instructions carefully before use.
- Use the device only for its intended monitoring purpose.
- Keep the finger still during measurement for more reliable readings.
- Avoid using the device immediately after strenuous physical activity; allow the user to rest first.
- Keep the device clean and dry.
- Replace batteries when the low-battery indicator appears.
- Keep out of reach of young children when not in use.
- The pulse oximeter is a monitoring device and should not be used as a substitute for professional medical diagnosis or treatment.

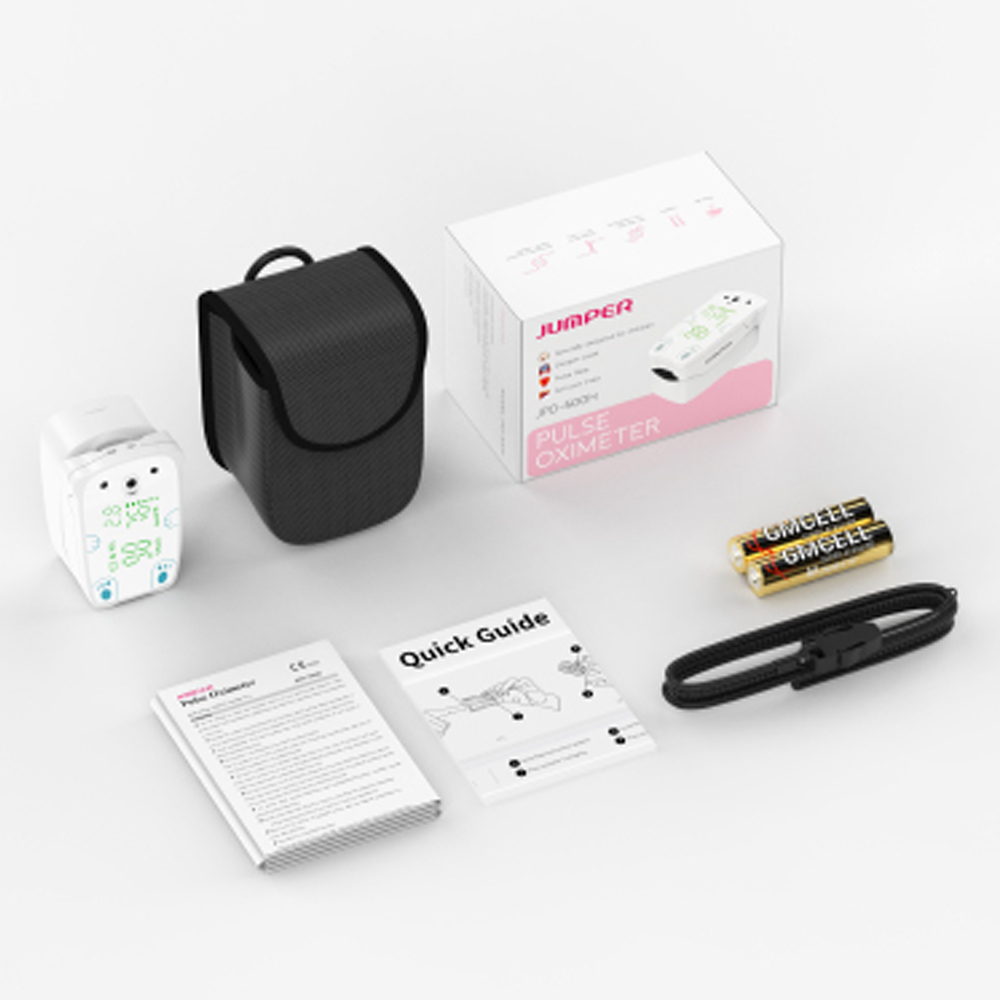

Package & Accessories
The package includes the JPD-500H LED Fingertip Pulse Oximeter and its standard accessories as supplied by the manufacturer.
Why Choose JPD-500H?
With its compact size, child-friendly finger chamber, LED display, alert function, and multiple measurement parameters, the JPD-500H is a convenient choice for routine fingertip monitoring of SpO₂, pulse rate, and perfusion index in children.
